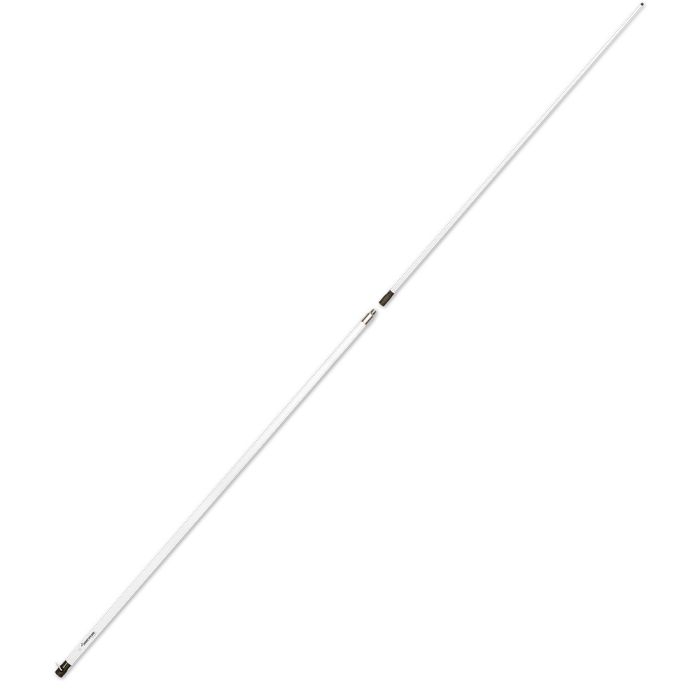

Galaxy 5230 14' VHF Antenna - 8dB Gain
The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.
Features:
- 5/8 wave over 1/2 wave dipole
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20 feet of RG-8/X cable and a PL-259 connector
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
- Two sections: Base 94", Tip 74" -
- Shakespeare Limited Warranty: 5 years
Technical Specifications:
- Frequency: VHF Marine Band
- Bandwidth: 3 MHz within 2.0:1 VSWR
- SWR: Nominally 1.5:1 at 156.8 MHz
- Impedance: 50 ohms
- Gain: 8 dB
- Max Input (Watts): 200 watts
- DC Ground: YES
- Height (feet): 14
- Polarization: Vertical
| Product Name | Shakespeare Galaxy 5230 14' VHF Antenna - 8dB Gain |
|---|---|
| Condition | New |
| Quick Specifications | Antenna Band = VHF | Color = White | Construction = Fiberglass | Ferrule Type = Stainless Steel | Length (Inches) = 168" |
| List Of Accessories by MFG | 408-R|410-R|4186-BP|4186-U|4187|4365|81-S|4187HD|4700|4700-1|4700-2|4190|4710|4720|4188-SL |
| MPN | 5230 |
| Brand | Shakespeare |
| UPC | 719441200084 |
| Rebate Start Date | 05/01/2025 |
