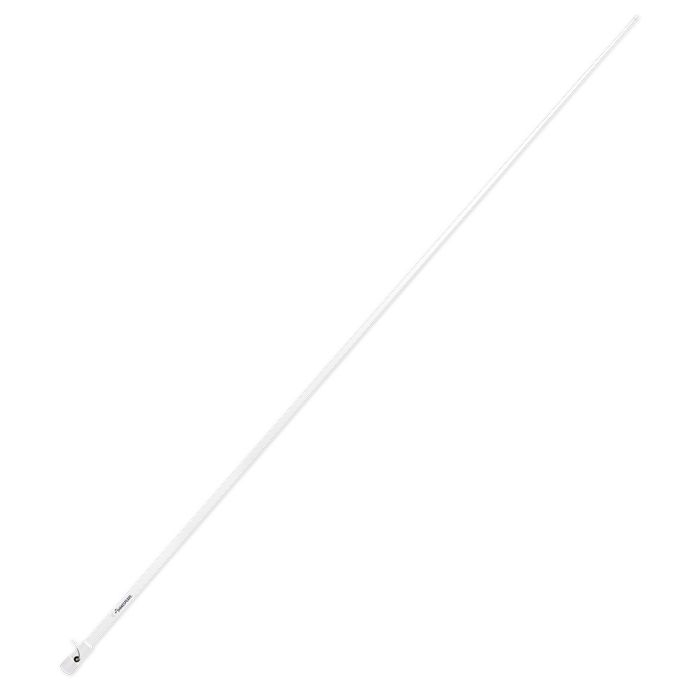

Shakespeare 5206-N 8' VHF Antenna
In stock
$84.98
Quick Overview
SHAKESPEARE VHF 8FT 5206-N 6DB RL VERSION SHORT VERSION
Shakespeare Style 5206-N VHF Marine - Reduced Length Version
8' LENGTH 6dB
END-FED WITH MATCHING STUB
Same as the Style 5206-C, but the 5206-N has a nylon ferrule.
An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.
Technical Specifications:
8' LENGTH 6dB
END-FED WITH MATCHING STUB
Same as the Style 5206-C, but the 5206-N has a nylon ferrule.
An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.
- Quality copper cable elements for good range and efficiency
- Nylon ferrule with standard 1"-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
- Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | 3 MHz |
| SWR: | 1.5:1 @156.8 MHz |
| Impedance: | (Ohms): 50 |
| Gain: | 6 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester. |
| Termination: | RG-58 |
| Height (feet): | 8 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
| Product Name | Shakespeare 5206-N 8' VHF Antenna |
|---|---|
| Condition | New |
| Quick Specifications | Antenna Band = VHF | Color = White | Construction = Fiberglass | Ferrule Type = Nylon | Length (Inches) = 96" |
| Link to Product Video | https://www.youtube.com/embed/pbY3nA9JieQ |
| List Of Accessories by MFG | 408-R|410-R|4186-BP|4186-U|4187|4365|81-S|4187HD|4700|4700-1|4700-2|4190|4710|4720|4188-SL |
| MPN | 5206-N |
| Brand | Shakespeare |
| UPC | 719441100186 |
| Rebate Start Date | 05/01/2025 |
