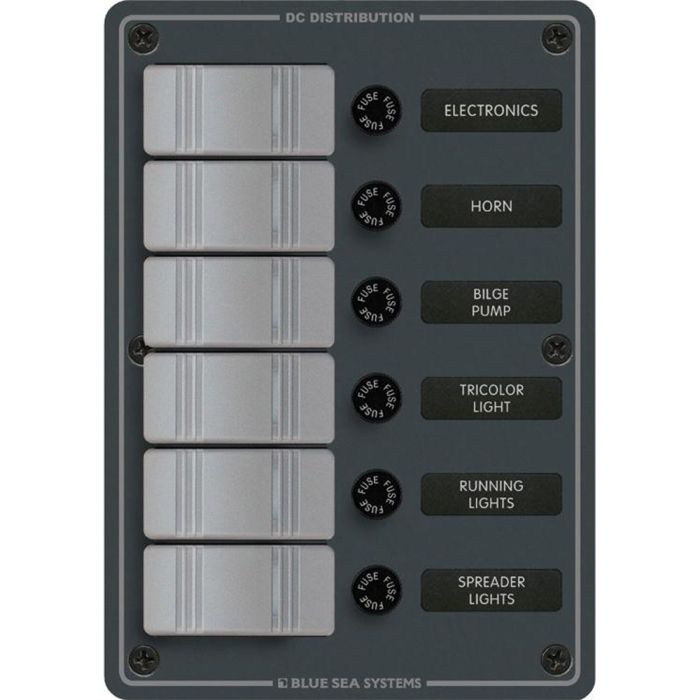

Blue Sea 8053 Slate Grey - 6 Position - Vertical
Quick Overview
BLUE SEA 8053 PANEL WATERPROOF 12VDC
FAST SHIPPING FROM U.S. WAREHOUSES
Free shipping on eligible items in the contiguous U.S.; exclusions apply (AK, HI, PR).
- Ships today: Order by 2 PM EST for same-day dispatch (Mon–Fri)
- Smart routing: Ships from our warehouses across the U.S.—closest to you
- Category expertise: Real specialists in every category—get tailored advice before you buy. Ask a Specialist
Typical Delivery Times:
- 2–3 days to most addresses
- 3–5 days to remote locations
8053 Slate Grey - 6 Position - Vertical
Features:
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
- Designed for flybridge and open cockpit applications
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Watertight mounting gasket included
- Countersunk mounting holes throughout
- Two-part polyurethane slate gray finish
- Industry standard height and width
- Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
- Completely wired and ready to install
Specifications:
- Weatherproof: Water Resistant
- Positions: 6
- Nominal Voltage: 12v / 24v DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A @ 12v DC / 15A @ 24v DC
- Height: 7.5"
- Width: 5.25"
- Depth: 3"
Included:
- (6) 5021 Panel Mount AGC/MDL Fuse Holder
- (1) 8030 Basic DC Panel Label Set - 30 Labels
- (6) 8230 Contura Switch SPST Gray - OFF-ON
*NOTE: Waterproof panel labels are not backlit
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Product Name | Blue Sea 8053 Slate Grey - 6 Position - Vertical |
|---|---|
| Condition | New |
| Quick Specifications | Waterproof = Resistant | AC/DC = DC | Max Breaker Quantity = 6 | Voltage = 12/24v |
| List Of Accessories by MFG | 20002|20012 |
| MPN | 8053 |
| Brand | Blue Sea Systems |
| UPC | 632085080532 |
