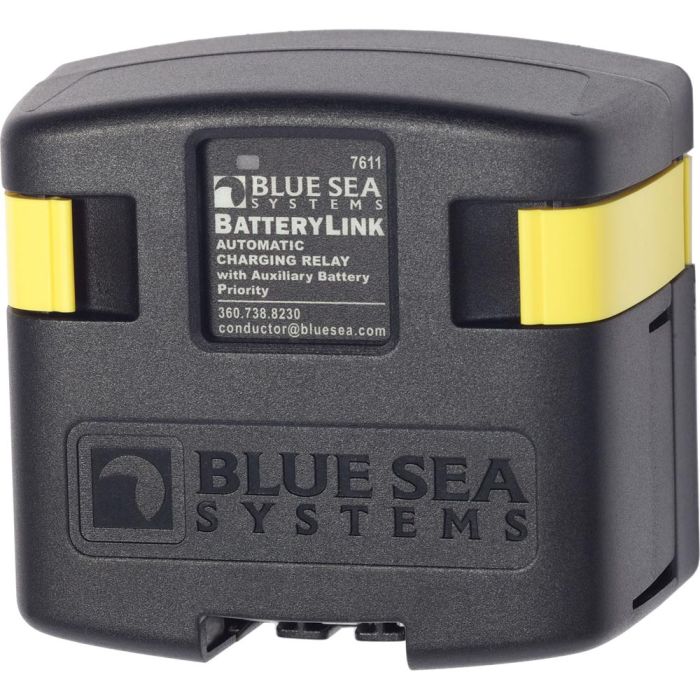

Blue Sea 7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging
Quick Overview
BLUE SEA 7611 DC BATTERYLINK AUTOMATIC CHARGING RELAY 120A
eBay Top Rated
Trusted seller since 2006
99% positive feedback
99% positive feedback
Ships from U.S. warehouses — Order by 2 PM EST (Mon–Fri) for same-day dispatch. Free shipping on eligible items in contiguous U.S. (AK, HI, PR excluded). Arrives in 2–5 business days.
30-day hassle-free returns
SSL Encrypted & Secure Checkout | More than 300,000 happy customers | 20 years in business
Related Products
Check items to add to the cart or
7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging
Features:
Specifications:
Features:
- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections
- 7/8" (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1/4" x .032" male quick connect terminals for ground and optional features
Specifications:
- Intermittent Rating: 5 min.: 210 Amps
- Continuous Rating: 120 Amps
- Nominal Voltage: 12/24 Volts DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Product Name | Blue Sea 7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging |
|---|---|
| Condition | New |
| Quick Specifications | Continuous Amperage = 120a |
| List Of Accessories by MFG | 5005|5191|5502|5503|1135-FT|1145-FT|1155-FT|1125-FT |
| MPN | 7611 |
| Brand | Blue Sea Systems |
| UPC | 632085076115 |
